Building Movement and Staggered Starts

This page documents the movement interface in run configs (movement:) and shows one standardized comparison across all examples.

All scenarios here use:

• examples/data_formulation_visitors.csv

• A faculty catalog matching the number of buildings in the scenario

Movement Configuration

movement:
  policy: none          # or travel_time / nonoverlap_time
  phase_slot:
    BuildingA: 1
    BuildingB: 1
  travel_slots:         # used for policy: travel_time (or "auto")
    BuildingA:
      BuildingA: 0
      BuildingB: 1
    BuildingB:
      BuildingA: 1
      BuildingB: 0

• policy: none: no explicit inter-building travel-time constraints.

• policy: travel_time: explicit pairwise slot lag constraints from travel_slots.

• policy: nonoverlap_time: auto-derive lag constraints from absolute slot timestamps.

• phase_slot: earliest slot allowed for each building (supports staggered starts).

• travel_slots: auto: allowed with policy: travel_time.

• min_buffer_minutes: optional nonnegative buffer for auto-derived lags.

• Prefer explicit AM/PM or 24-hour slot labels in run configs. Bare labels are still accepted via a visit-day heuristic, but they emit a warning because they are ambiguous.

Examples for Different Building Configurations

Run every scenario and regenerate all movement figures:

python scripts/run_building_configuration_examples.py

This command prints one unified comparison table and writes scenario plots to docs/_static/movement_<slug>_{visitor,faculty}.png.

Category	Scenario	Policy	Feasible	Objective	Assignments	Requested Assignments	Group Slots
Baseline	One building (no movement)	none	True	110.9	30	30	13
Baseline	Two buildings (close, policy=none)	none	True	110.9	30	30	13
Baseline	Three buildings (close, policy=none)	none	True	110.9	30	30	13
Travel lag	Two buildings (+1 slot travel lag)	travel_time	True	110.9	30	30	13
Travel lag	Three buildings (+1 slot travel lag)	travel_time	True	103.7	28	25	12
Shifted clocks	Shifted clocks (ABC starts 15 min earlier)	nonoverlap_time	True	110.9	30	30	13
Shifted clocks	Shifted clocks (XYZ starts 15 min earlier)	nonoverlap_time	True	110.9	30	30	13
Phase slot	Staggered start (ABC first)	none	True	101.8	26	26	11
Phase slot	Staggered start (XYZ first)	none	True	94.9	24	23	9
Shifted clocks	Three buildings (10-minute shifted clocks, no breaks)	nonoverlap_time	True	116.1	33	31	14

Interpretation of the close-building equivalence:

• In this dataset, one-building, two-close-building, three-close-building, and two-building travel_time (+1 lag) all attain the same optimum.

• Practically, that means the added movement constraints are non-binding for this particular demand/availability profile.

• The three-building +1 lag case is stricter (more inter-building transition edges), so objective and assignments decrease.

Here are the files used in these examples.

Slug	Config	Faculty Catalog
one_building	examples/config_one_building.yaml	examples/faculty_one_building.yaml
two_close_none	examples/config_two_buildings_close.yaml	examples/faculty_formulation.yaml
three_close_none	examples/config_three_buildings_close.yaml	examples/faculty_three_buildings.yaml
two_travel_lag1	examples/config_two_buildings_travel_delay.yaml	examples/faculty_formulation.yaml
three_travel_lag1	examples/config_three_buildings_travel_delay.yaml	examples/faculty_three_buildings.yaml
shifted_abc_earlier_nonoverlap	examples/config_shifted_abc_earlier_nonoverlap.yaml	examples/faculty_formulation.yaml
shifted_xyz_earlier_nonoverlap	examples/config_shifted_xyz_earlier_nonoverlap.yaml	examples/faculty_formulation.yaml
staggered_a_first	examples/config_shifted_a_first.yaml	examples/faculty_formulation.yaml
staggered_b_first	examples/config_shifted_b_first.yaml	examples/faculty_formulation.yaml
three_shifted_nonoverlap	examples/config_three_buildings_shifted_nonoverlap.yaml	examples/faculty_three_buildings.yaml

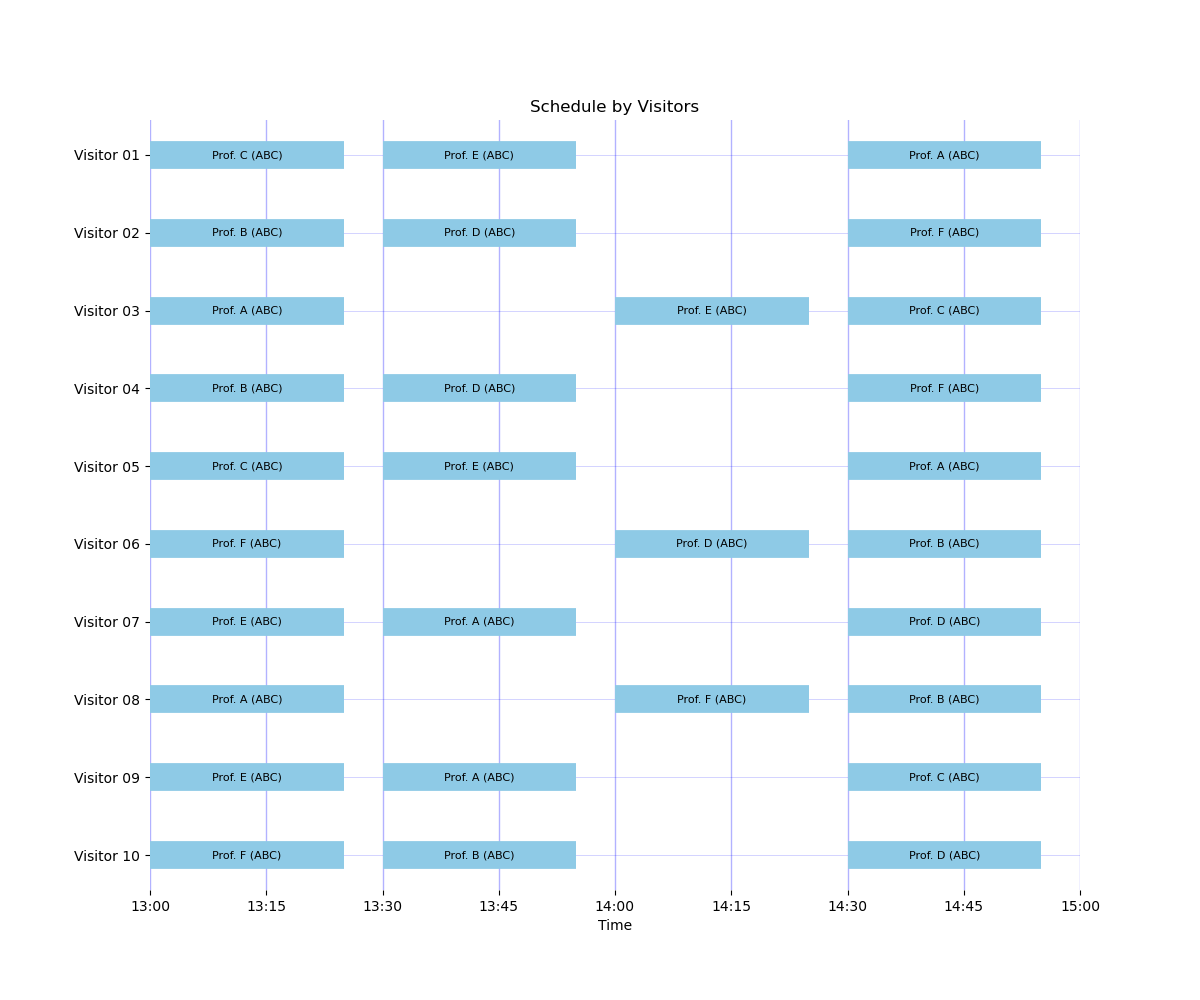

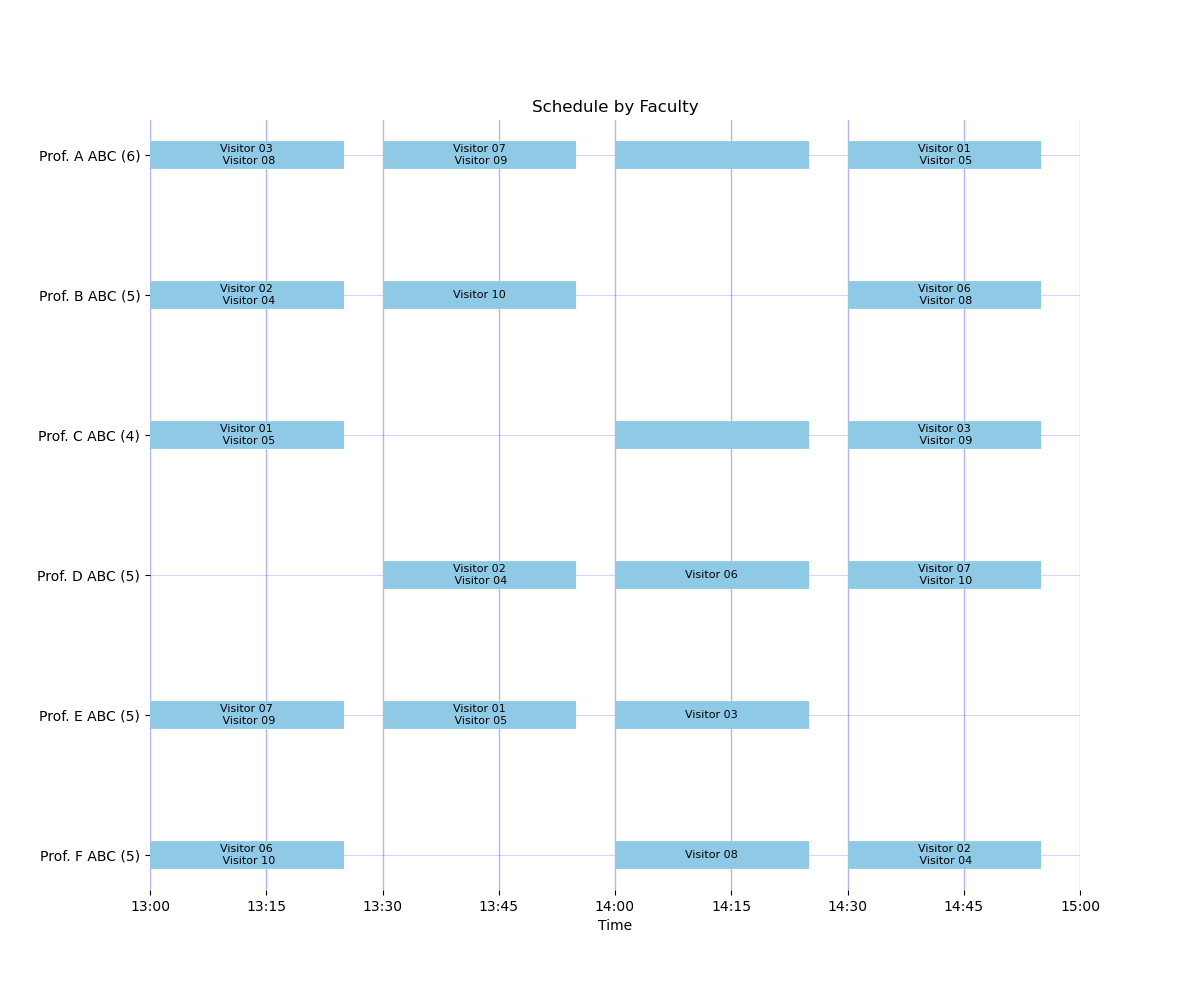

Example 1: One building (no movement)

This is the simplest operational baseline: everyone is in one building, so movement constraints are irrelevant and the model focuses only on preferences and availability.

Configuration:

• examples/config_one_building.yaml

• examples/faculty_one_building.yaml

Result summary: feasible, objective 110.9, assignments 30, requested assignments 30, group slots 13.

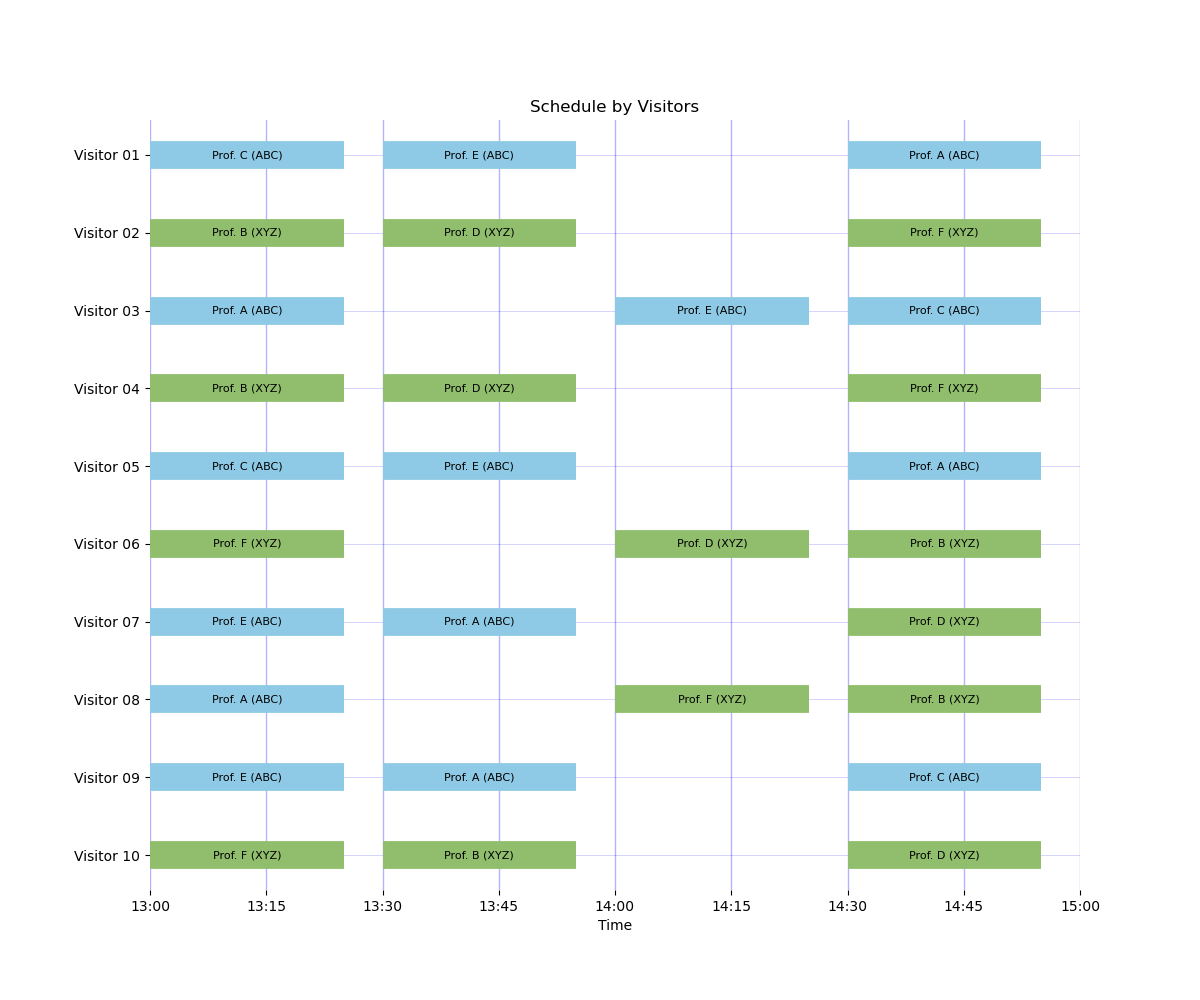

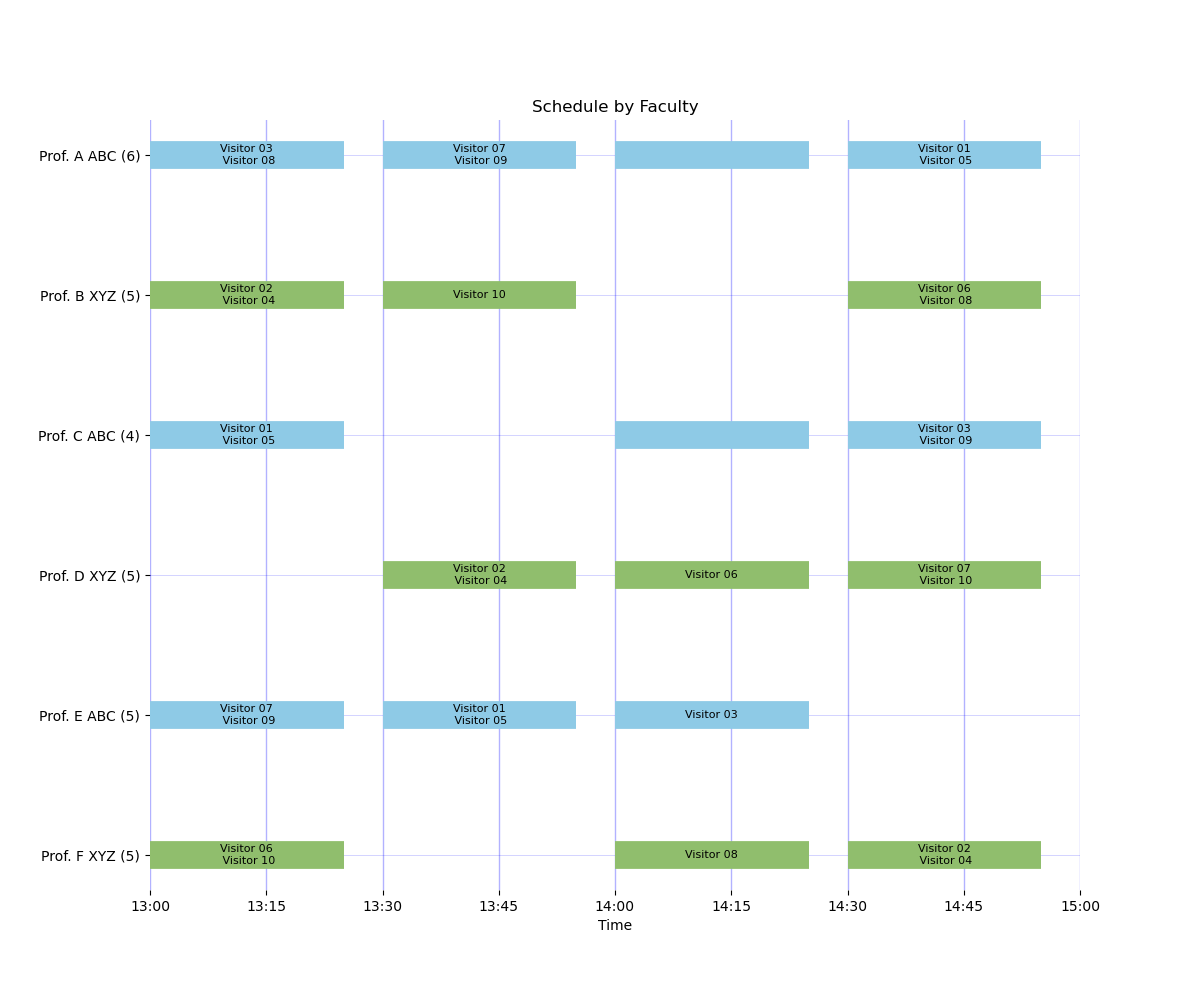

Example 2: Two nearby buildings

This is a two-building day where buildings are close enough that explicit travel lags are not modeled, which matches operations where walking time is negligible at the slot scale.

Configuration:

• examples/config_two_buildings_close.yaml

• examples/faculty_formulation.yaml

Result summary: feasible, objective 110.9, assignments 30, requested assignments 30, group slots 13.

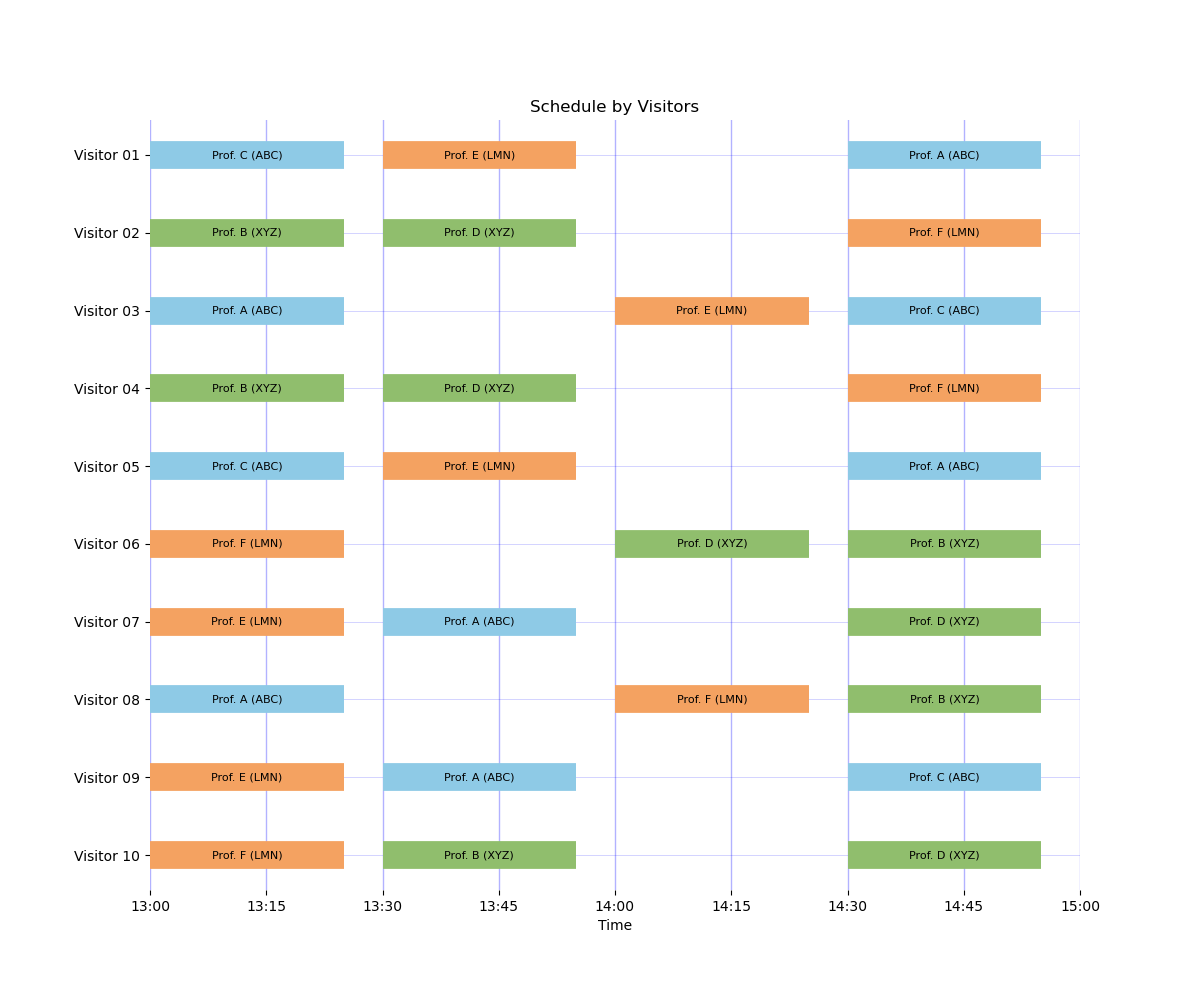

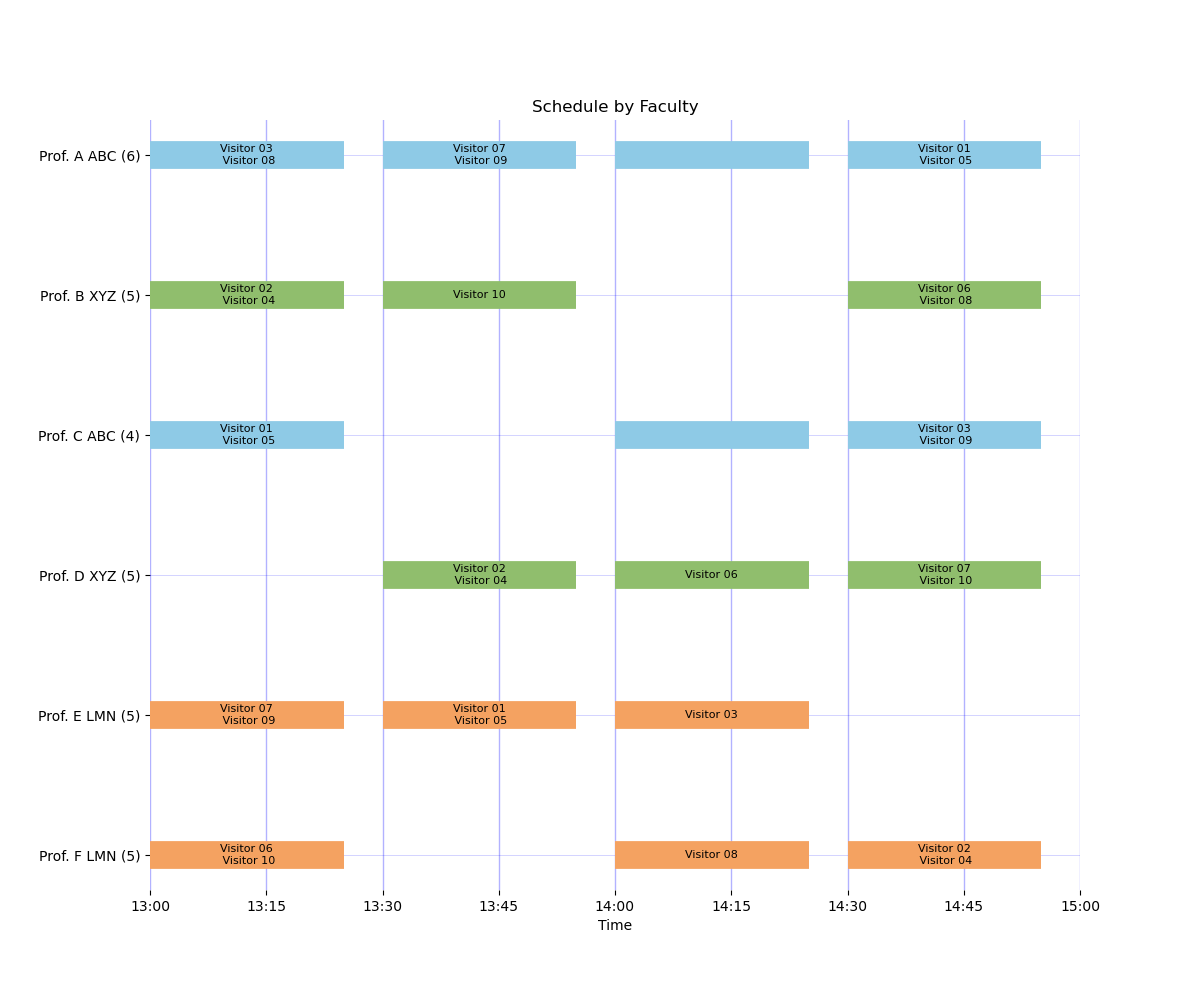

Example 3: Three nearby buildings

This extends the close-building baseline to three locations and is useful when events are spread across multiple nearby spaces with effectively synchronized movement.

Configuration:

• examples/config_three_buildings_close.yaml

• examples/faculty_three_buildings.yaml

Result summary: feasible, objective 110.9, assignments 30, requested assignments 30, group slots 13.

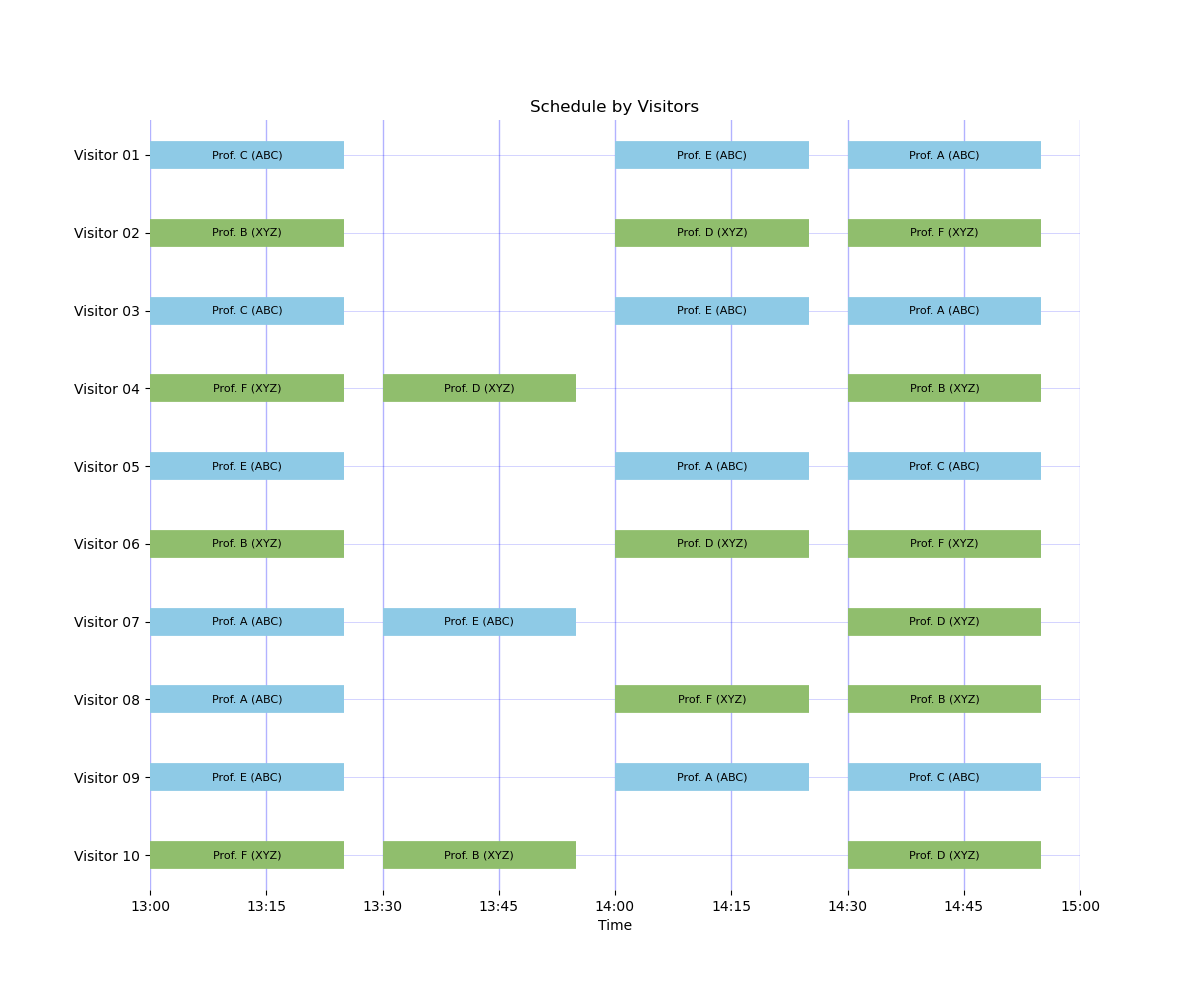

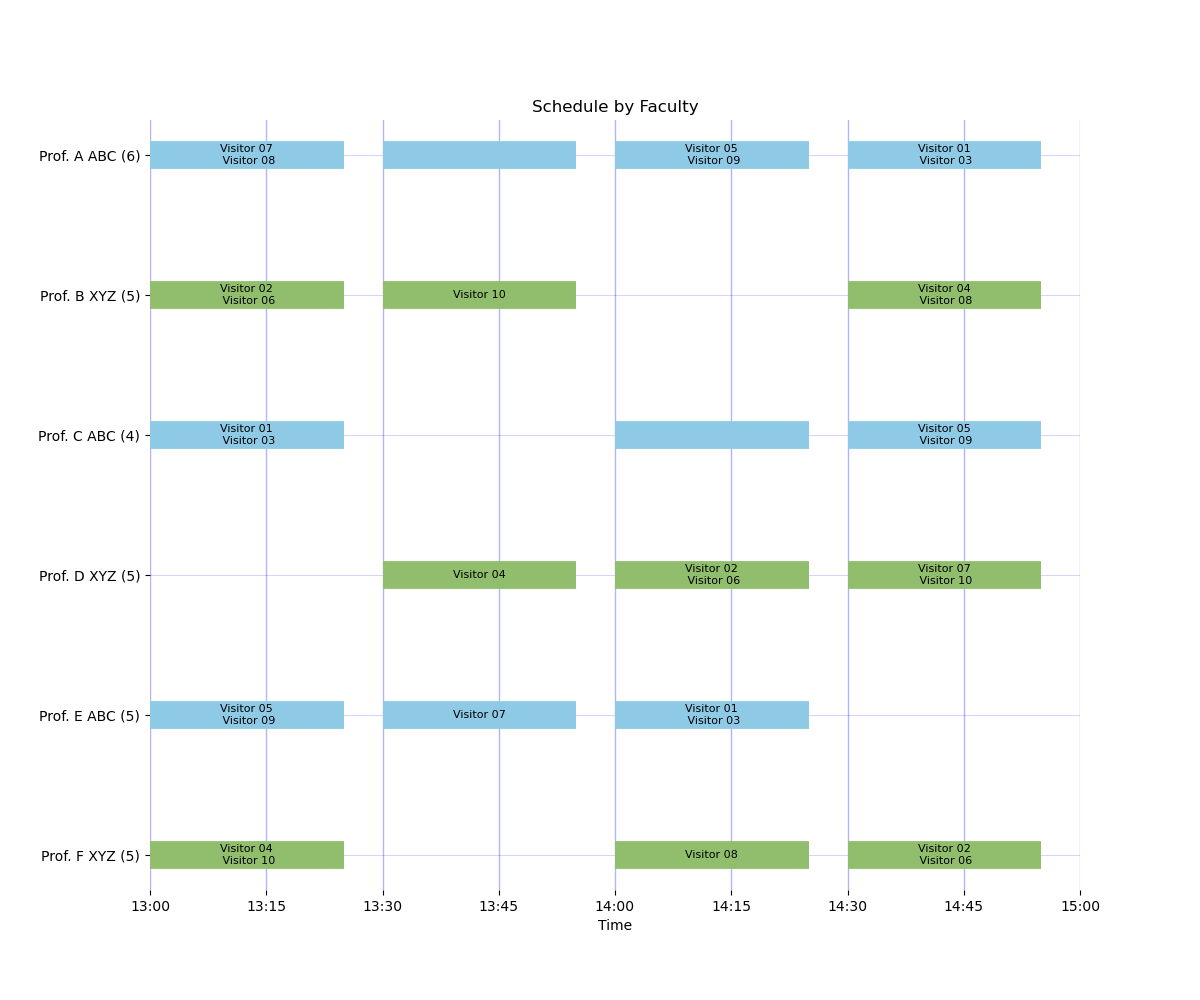

Example 4: Two buildings with one-slot travel delays

This scenario introduces explicit travel lag constraints between two buildings and represents operations where cross-building movement must consume at least one slot of separation.

Configuration:

• examples/config_two_buildings_travel_delay.yaml

• examples/faculty_formulation.yaml

Result summary: feasible, objective 110.9, assignments 30, requested assignments 30, group slots 13.

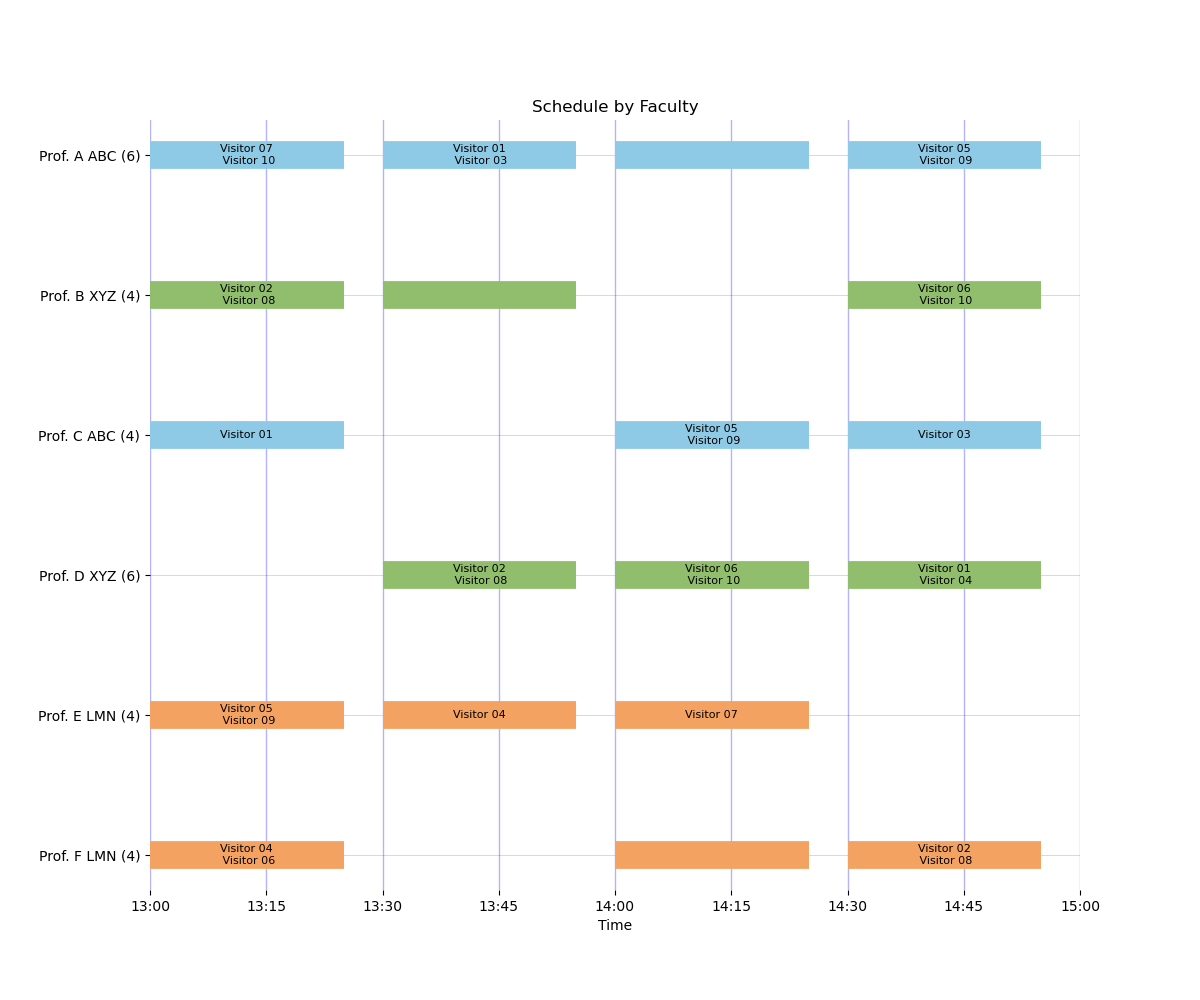

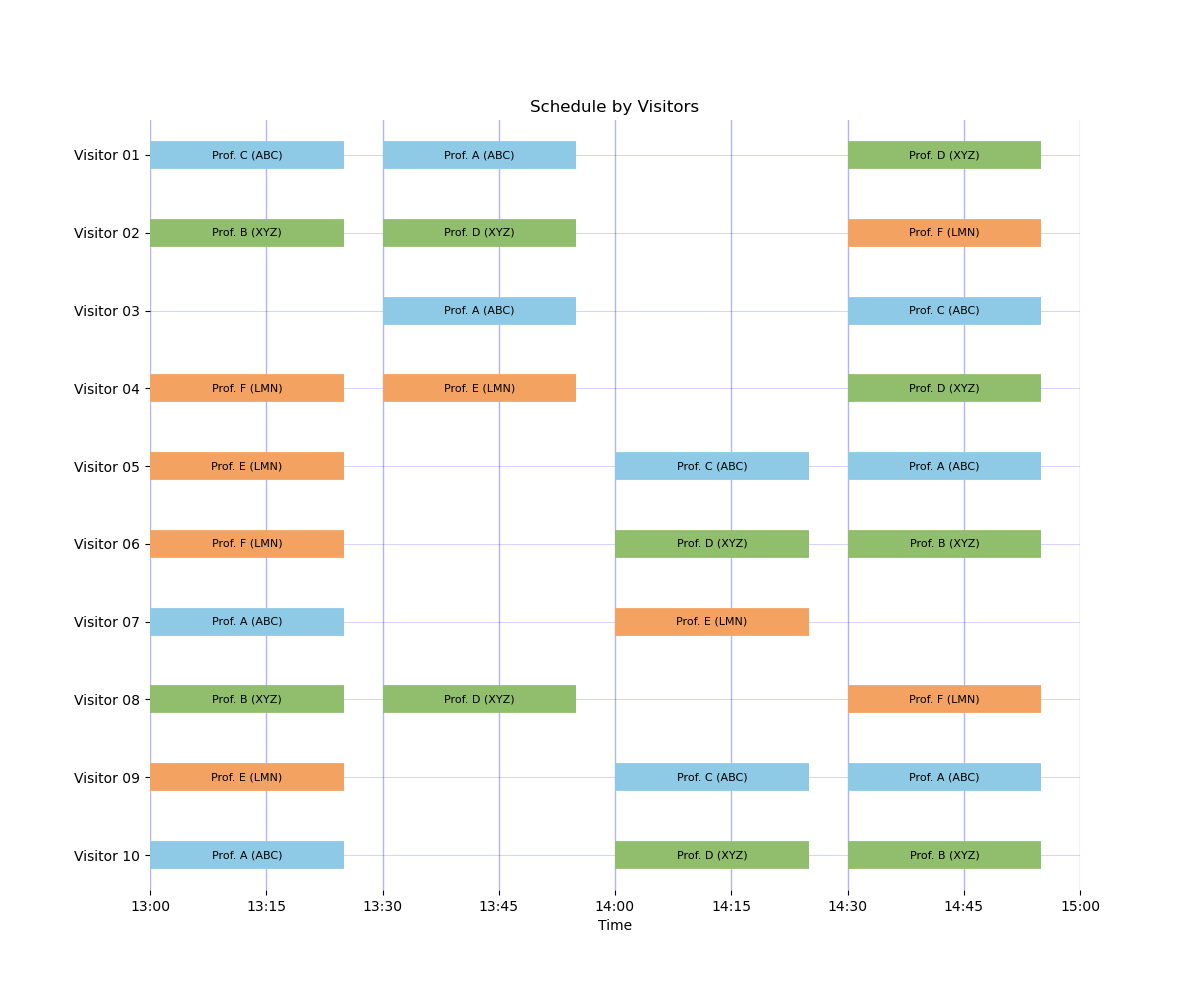

Example 5: Three buildings with one-slot travel delays

This is the strict three-building travel-lag case and reflects operations where every cross-building move needs buffer time, which can reduce achievable assignments.

Configuration:

• examples/config_three_buildings_travel_delay.yaml

• examples/faculty_three_buildings.yaml

Result summary: feasible, objective 103.7, assignments 28, requested assignments 25, group slots 12.

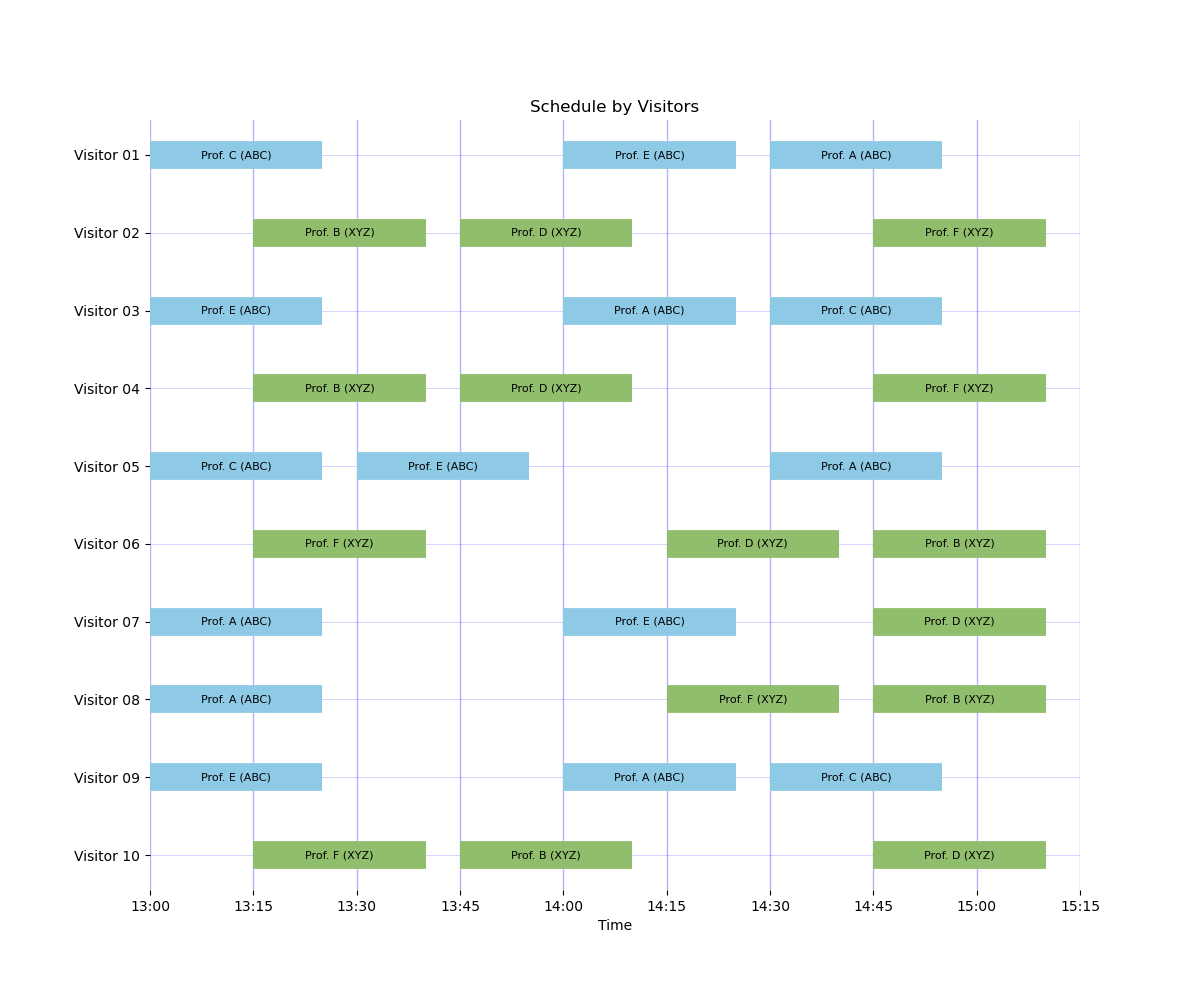

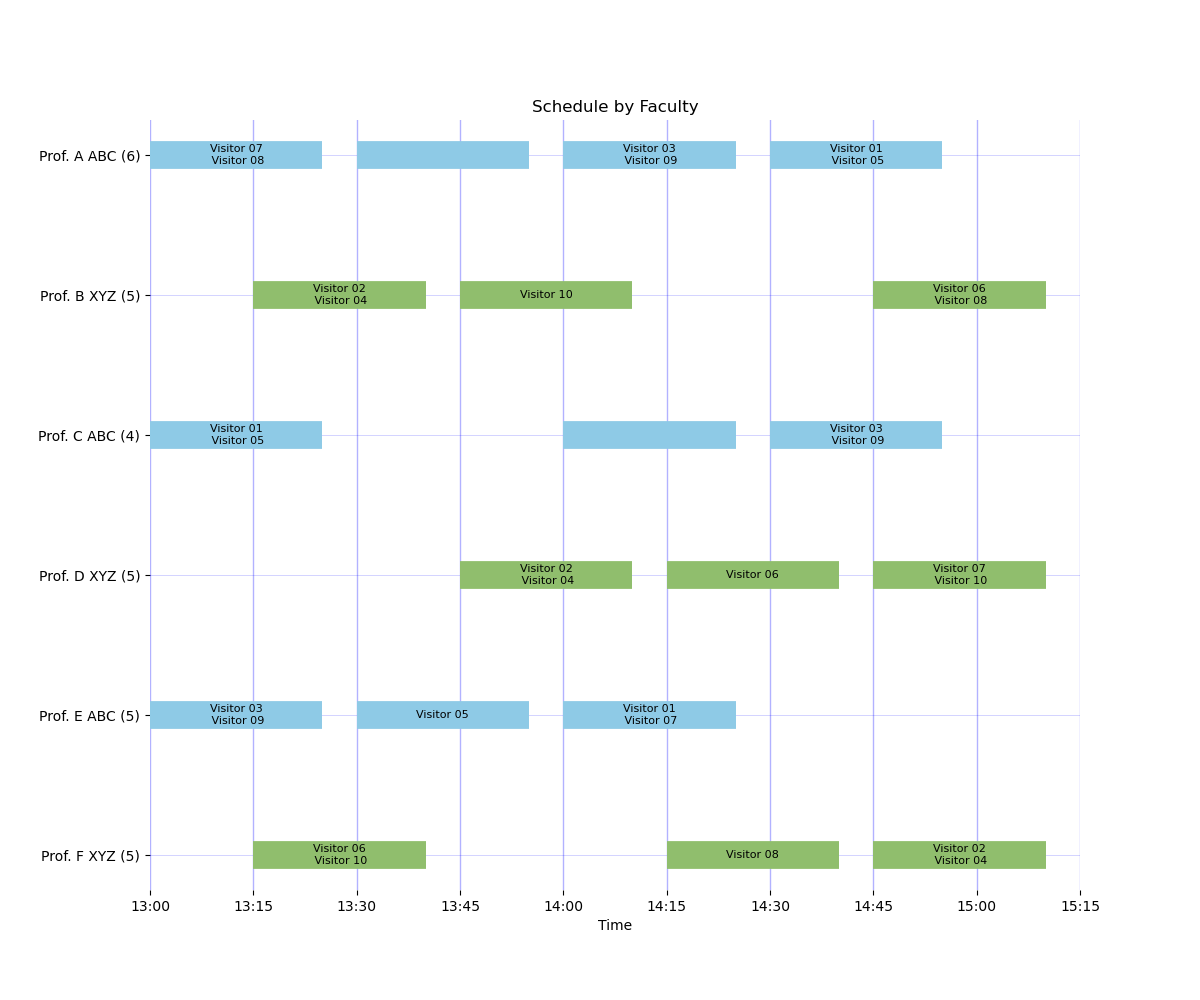

Example 6: Shifted clocks, building ABC starts 15 minutes earlier

This shifted-clock setup models operations where ABC sessions begin earlier than XYZ and movement feasibility is enforced directly from real clock times.

Configuration:

• examples/config_shifted_abc_earlier_nonoverlap.yaml

• examples/faculty_formulation.yaml

Result summary: feasible, objective 110.9, assignments 30, requested assignments 30, group slots 13.

Why this addresses cross-building movement without explicit break slots:

• nonoverlap_time derives travel lags from absolute timestamps.

• Adjacent-slot transitions are allowed when the destination slot starts after the source slot ends.

• That lets the model permit valid moves directly from one meeting to the next when timing permits.

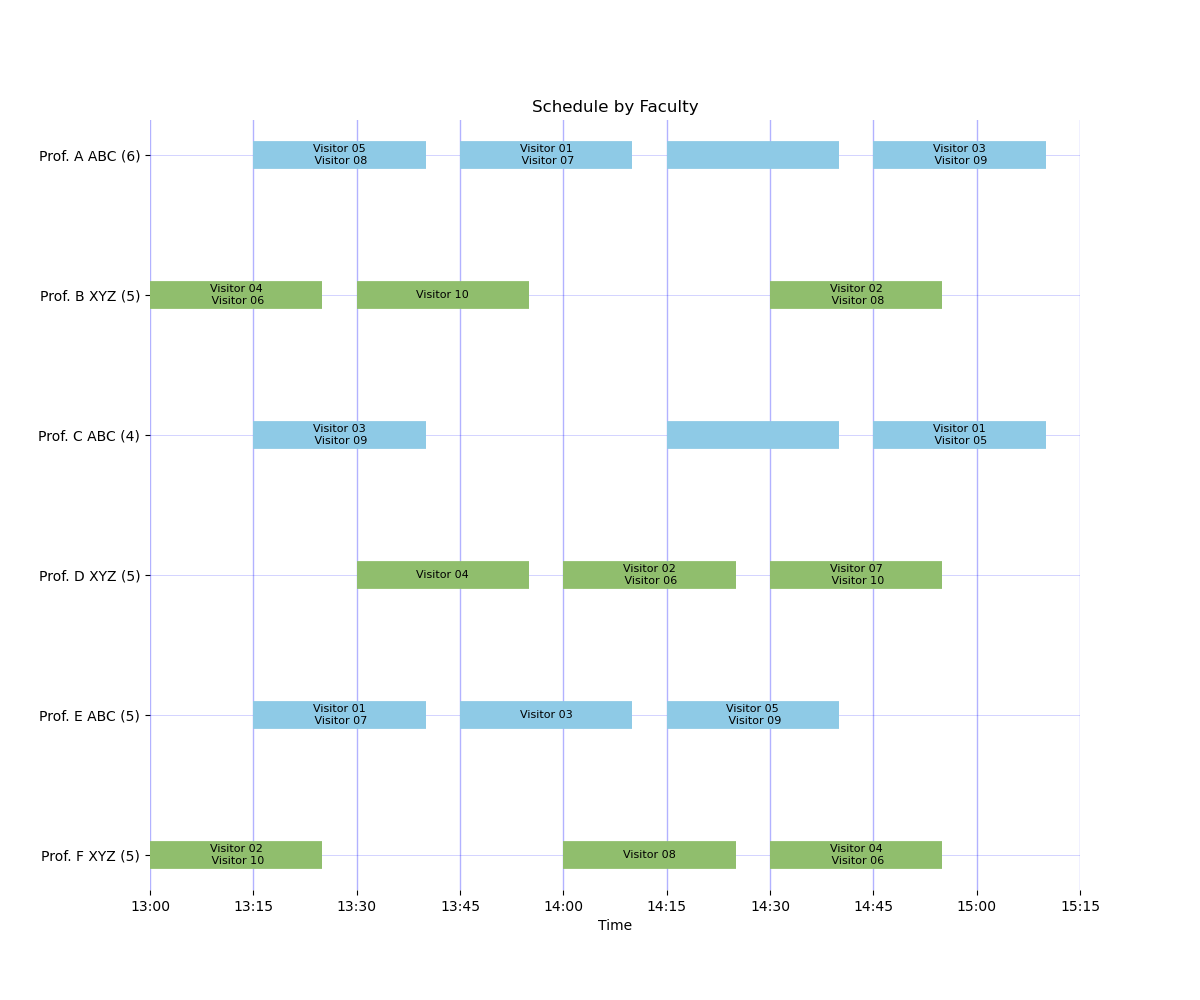

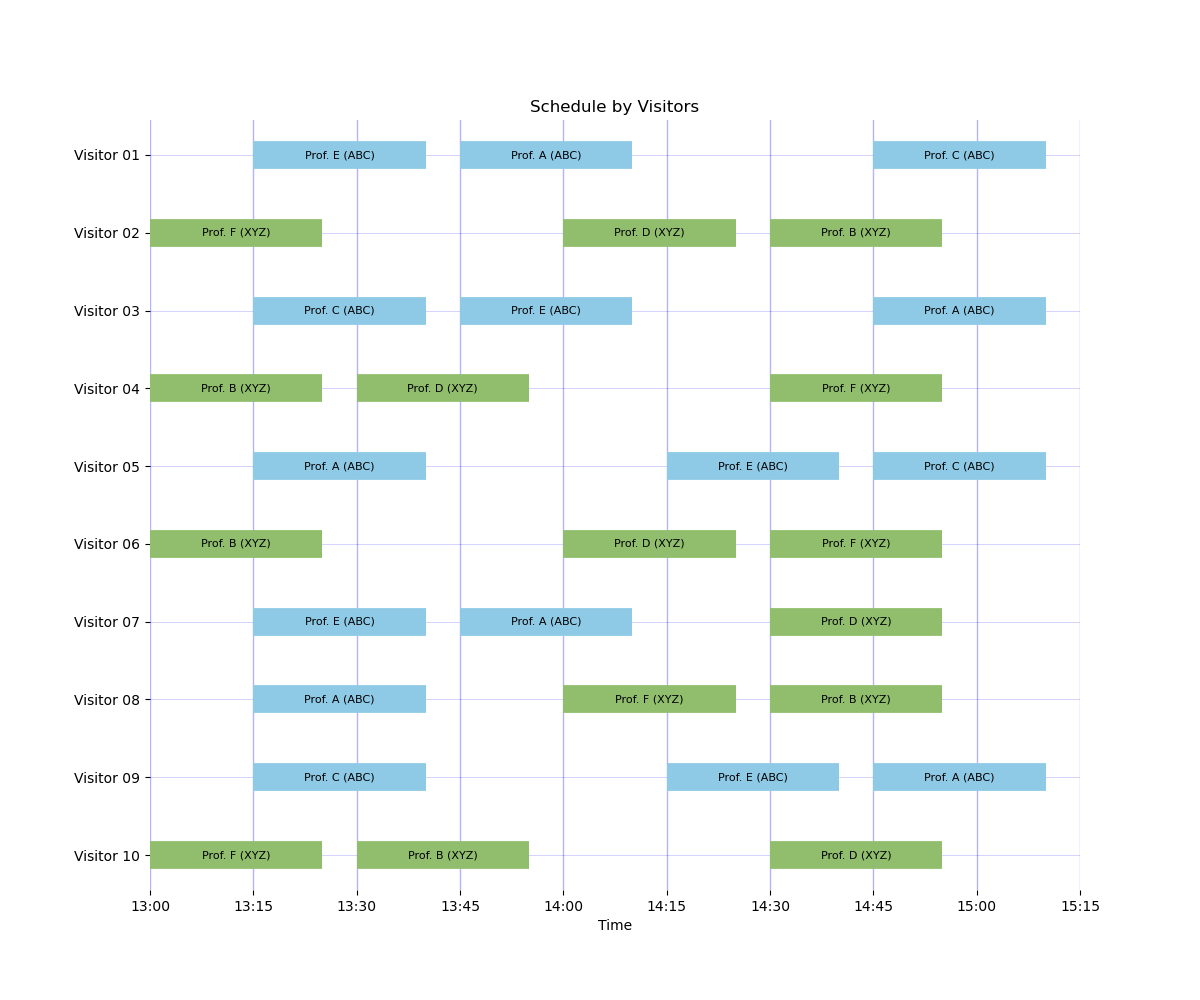

Example 7: Shifted clocks, building XYZ starts 15 minutes earlier

This is the mirrored shifted-clock case where XYZ starts earlier, useful when visitor flow or host logistics make XYZ the natural starting location.

Configuration:

• examples/config_shifted_xyz_earlier_nonoverlap.yaml

• examples/faculty_formulation.yaml

Result summary: feasible, objective 110.9, assignments 30, requested assignments 30, group slots 13.

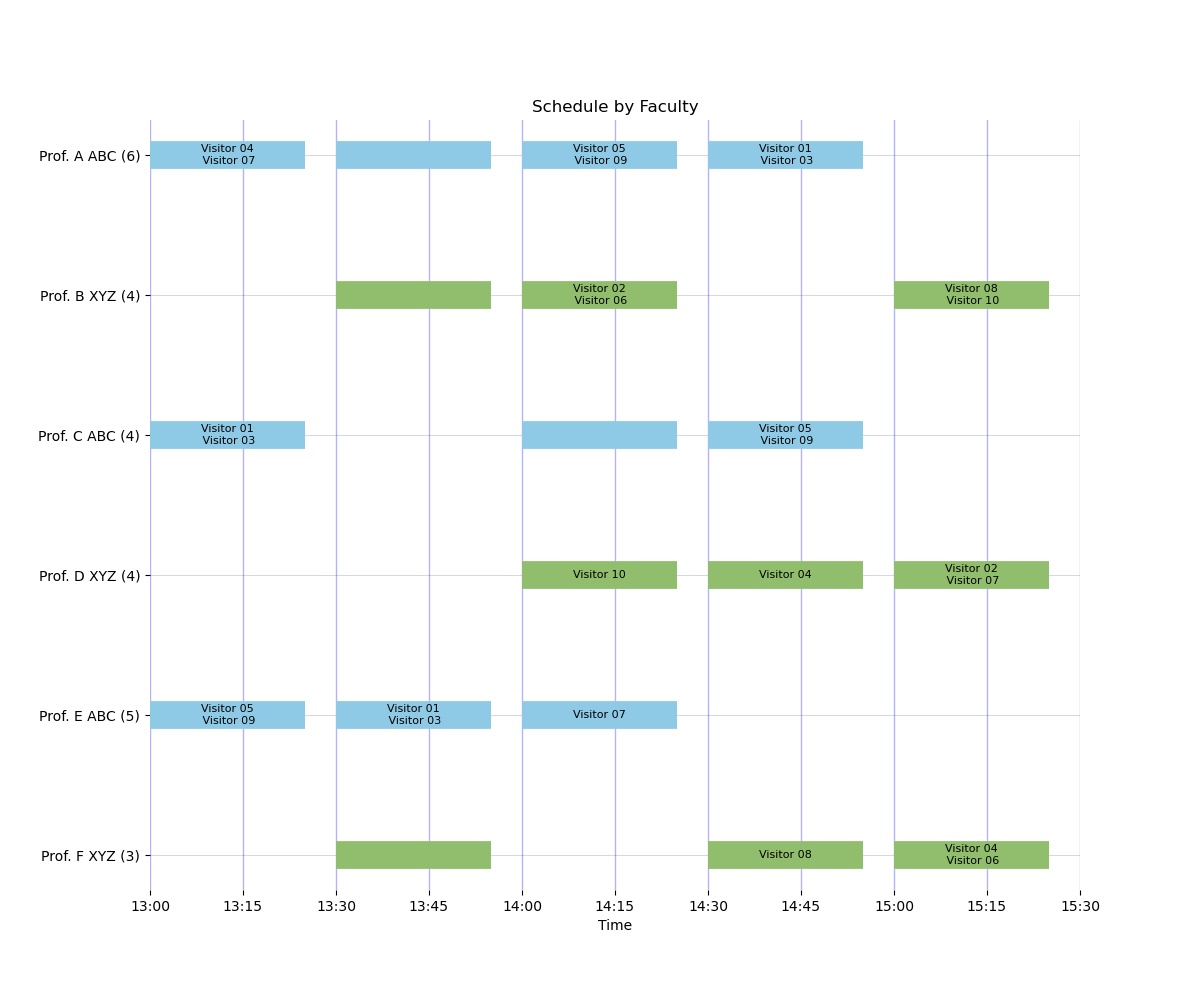

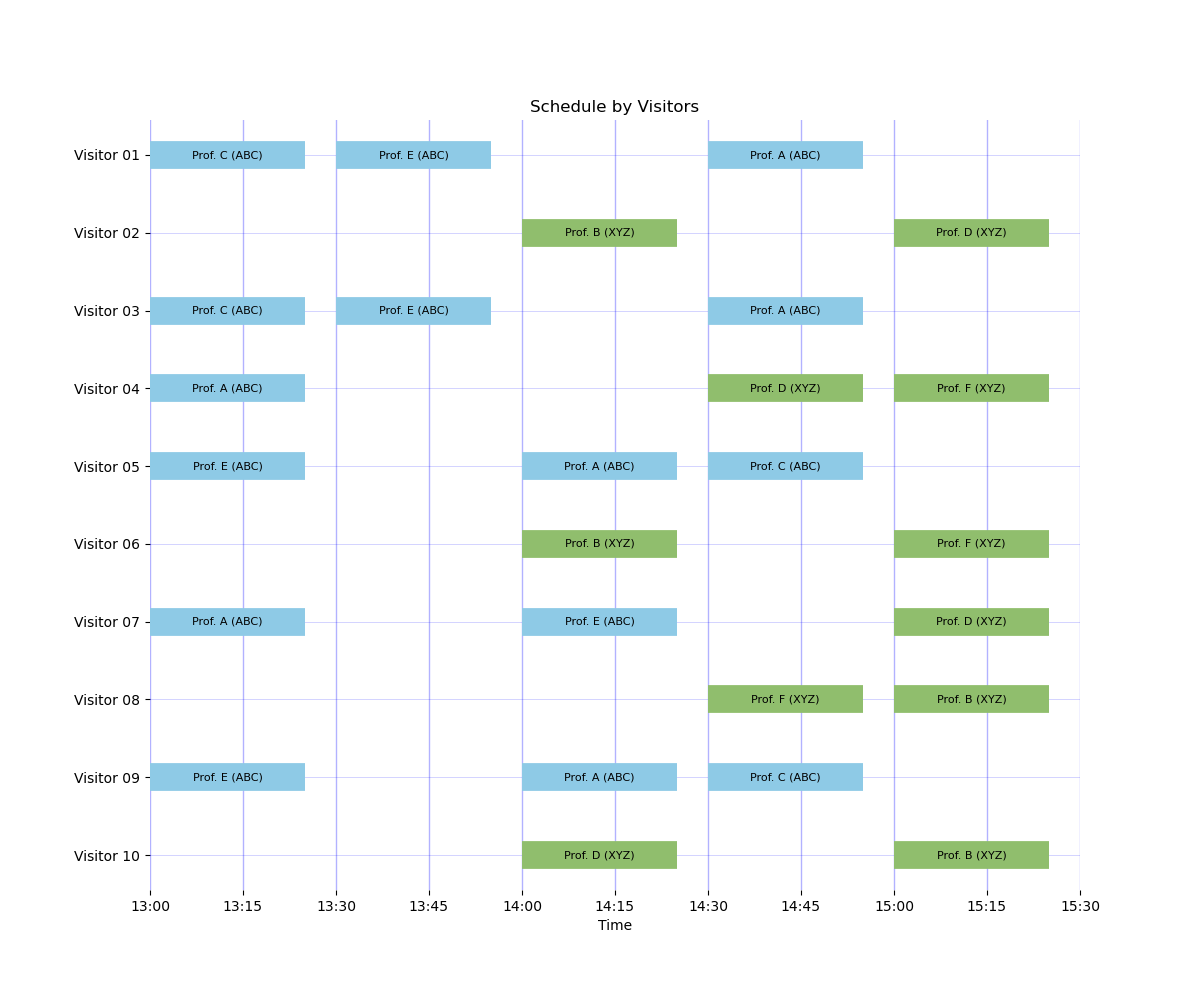

Example 8: Synced clocks, building ABC starts first

This phase-slot scenario is appropriate when visitors begin the event near ABC (for example, check-in or welcome activities in ABC), so scheduling intentionally opens ABC first.

Configuration:

• examples/config_shifted_a_first.yaml

• examples/faculty_formulation.yaml

Result summary: feasible, objective 101.8, assignments 26, requested assignments 26, group slots 11.

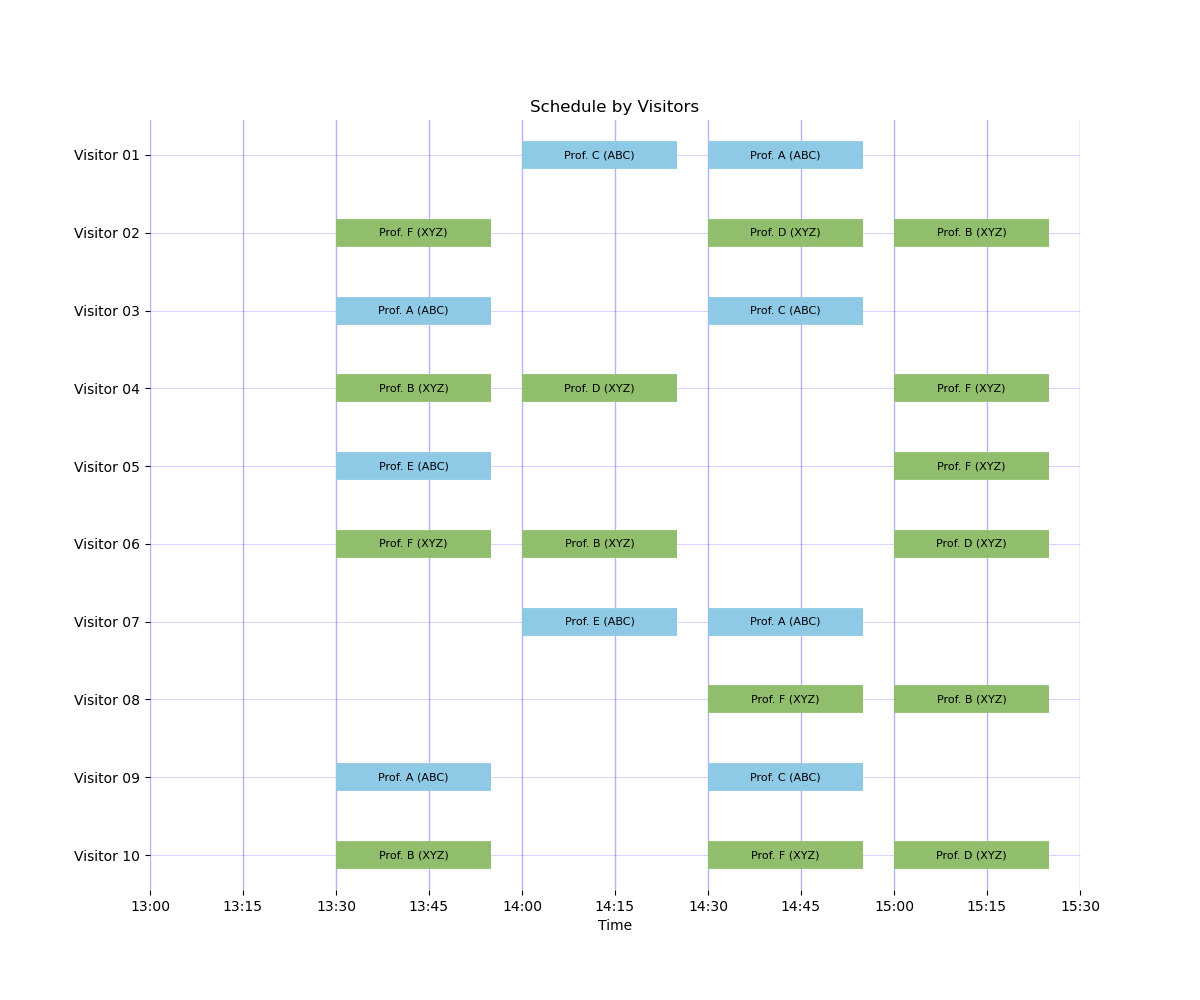

Example 9: Synced clocks, building XYZ starts first

This is the corresponding XYZ-first phase-slot variant for operations where the event begins near XYZ and initial visitor distribution favors that building.

Configuration:

• examples/config_shifted_b_first.yaml

• examples/faculty_formulation.yaml

Result summary: feasible, objective 94.9, assignments 24, requested assignments 23, group slots 9.

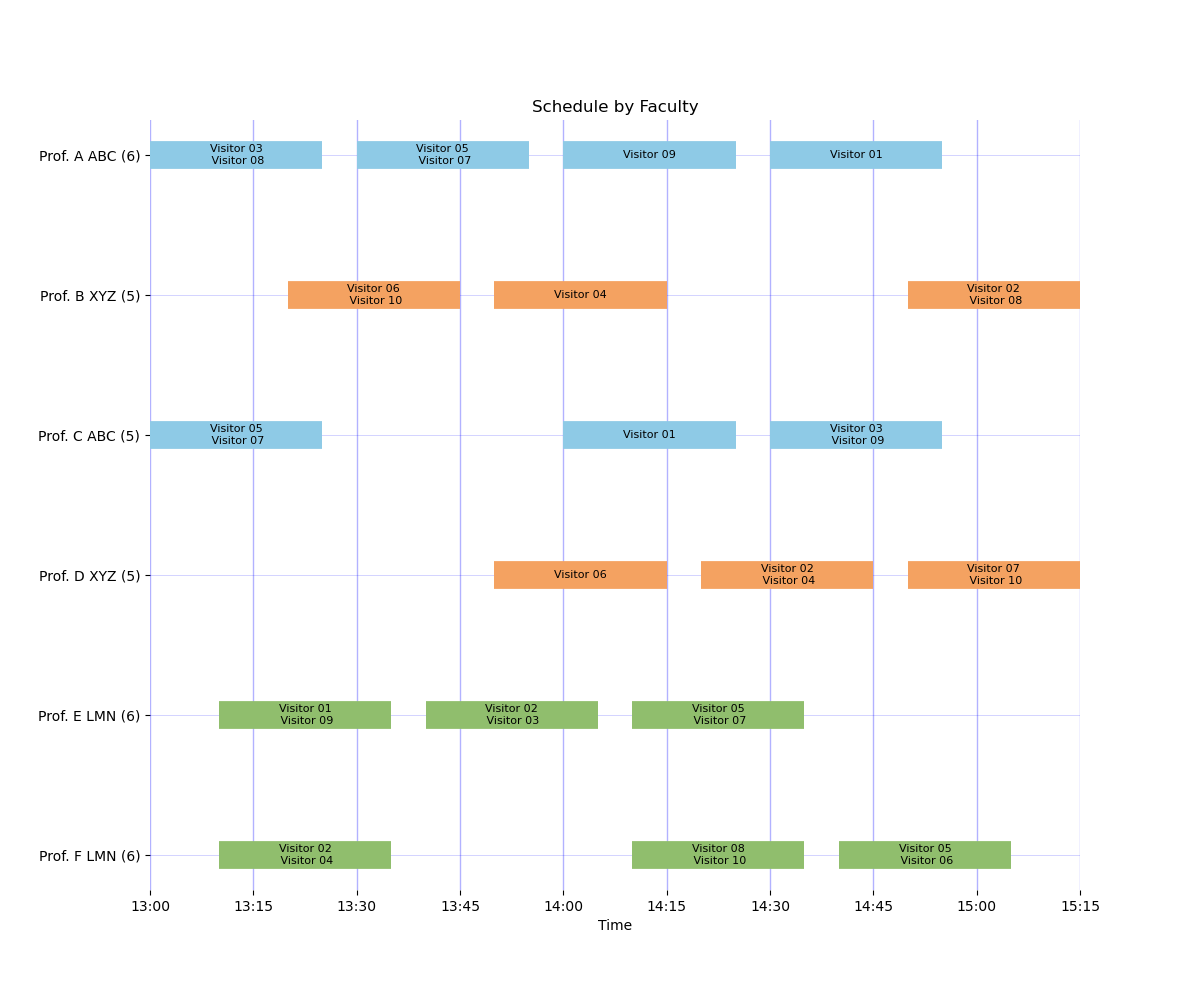

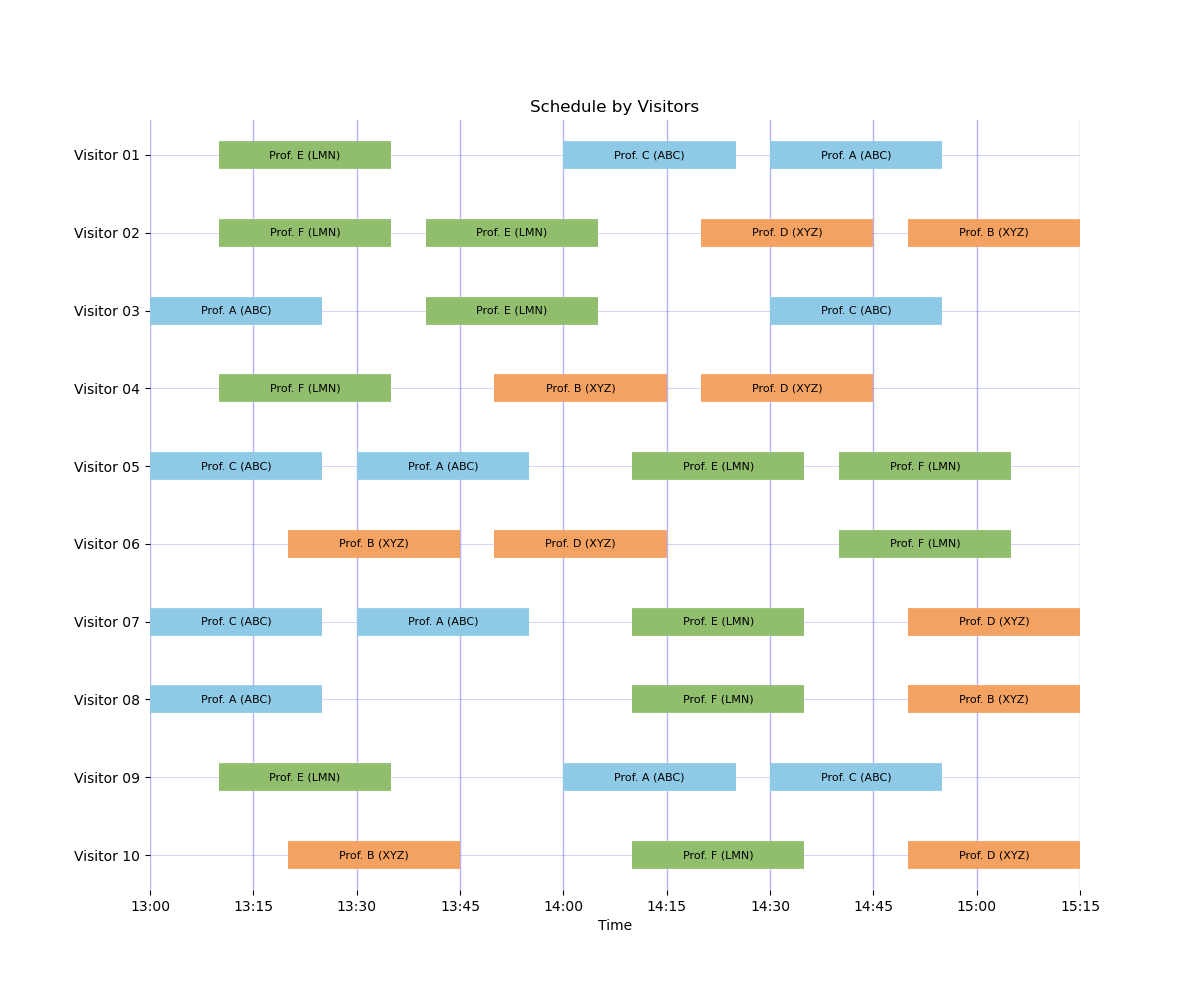

Example 10: Three buildings with shifted clocks

This recommended three-building shifted-clock setup models staggered time grids (ABC at :00, LMN at :10, XYZ at :20) so visitors can move between buildings without relying on dedicated break slots.

Configuration:

• examples/config_three_buildings_shifted_nonoverlap.yaml

• examples/faculty_three_buildings.yaml

Result summary: feasible, objective 116.1, assignments 33, requested assignments 31, group slots 14.

Why these results are sensible:

• nonoverlap_time automatically enforces physically valid movement using absolute timestamps across all three buildings.

• This example intentionally has no configured breaks, which increases available meeting capacity relative to break-constrained scenarios.

• The objective and assignment counts increase (vs. the baseline 30 assignments) because the model can schedule more total meetings while still respecting non-overlap travel feasibility.

Derived travel lag matrix used by the solver in this example:

ABC:
  ABC: 0
  LMN: 0
  XYZ: 0
LMN:
  ABC: 1
  LMN: 0
  XYZ: 0
XYZ:
  ABC: 1
  LMN: 1
  XYZ: 0

How to compute/inspect this in practice:

from pathlib import Path
from grad_visit_scheduler import load_run_config, build_times_by_building, compute_min_travel_lags

root = Path("examples")
cfg = load_run_config(root / "config_three_buildings_shifted_nonoverlap.yaml")
times = build_times_by_building(cfg)
lags = compute_min_travel_lags(times, min_buffer_minutes=0)
print(lags)

Legacy Mode Mappings

Legacy modes are still available with FutureWarning and map to movement configs:

• Mode.BUILDING_A_FIRST maps to policy: none with phase_slot offset (ABC:1, XYZ:2).

• Mode.BUILDING_B_FIRST maps to policy: none with phase_slot offset (ABC:2, XYZ:1).

• Mode.NO_OFFSET maps to policy: travel_time with a +1 inter-building lag matrix.

Break nuance:

• Legacy Mode.NO_OFFSET implicitly enforces break constraints by default.

• Movement-only configs do not imply breaks; set faculty_breaks and student_breaks explicitly for the preferred interface, or use legacy enforce_breaks=True to request one of each.
